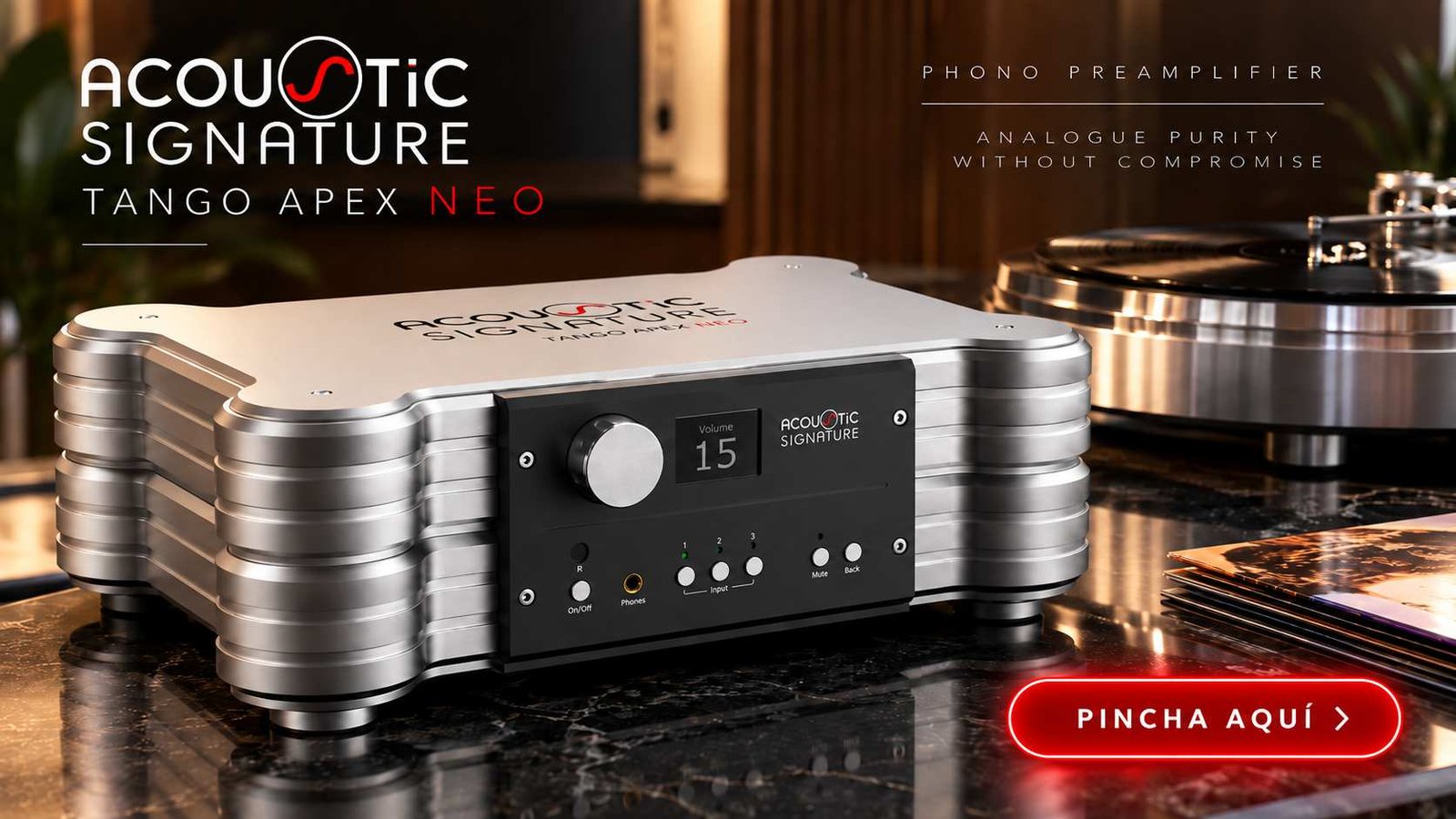

Acoustic Signature Tango Apex Neo

Description

The new Tango Apex NEO is a balanced phono preamplifier with a strictly dual-mono construction. The preamplifier is designed with an additional chassis per channel, a dedicated power supply per channel and a phono amplifier per channel. All functions of the Tango Apex NEO are remotely controlled.

Special features:

• 3 inputs: 1 x balanced XLR and 2 x unbalanced RCA
• All signal switching is carried out using ultra-high-quality miniature signal relays.
• Adjustable gain for each input (individually adjustable): 40 dB, 50 dB, 60 dB and 70 dB
• Individually adjustable input impedance for each input: 47, 100, 220, 470, 1 k, 47 k and all values resulting from parallel connection.
• Input capacitance: basic capacitance approx. <=100 pF, switchable capacitances for unbalanced inputs: 100 pF and 220 pF; two capacitances can be activated, resulting in three values (C1, C2, C1+C2)
• Subsonic filter: -24 dB. Operating frequency: 20 Hz.
• 2 outputs: 1 x XLR and 1 x RCA, maximum output voltage 8.5 V RMS switchable as a fixed output or as an adjustable output (volume control in 100 steps)
• Built-in headphone amplifier: maximum output voltage 8.5 V RMS
• Power supply: independent 25 VA shunt power supply per channel and an independent 25 VA power supply for microprocessor control. Galvanically isolated digital control from the analogue power supply.
• Signal-to-noise ratio: e.g. -73 dB with 60 dB amplification
• Frequency response: +-0.13 dB RIAA equalised
• Distortion factor: 0.06 %
• Crosstalk attenuation: better than -90 dB thanks to the dual-mono design
• Weight: 34 kg

Technical data

• Gain: 40–70 dB (+ value at )
• MM input capacitance [pF] (47 k): 100, 220, 320
• MC input impedance []: 47, 100, 220, 470, 1000, 47000
• Outputs (impedance/power): Unbalanced (RCA), 10
• Balanced (XLR), 10
• Telephones: max. 900 mW (30–250 )
• Power supply:
  • Internal analogue power supply for each channel,
  • Input: 115 V or 230 V AC 50/60 Hz (factory set)
  • Fuse: 2 A at 115 V / 1 A at 230 V, slow-blow
  • Rated power: 25 W; standby: 0.5 W
• Channel separation: > 89 dB (1 kHz)
• RIAA accuracy: ± 0.2 dB (30 Hz–20000 Hz)
• Distortion: < 0.01 %
• Maximum output level: XLR: 6.5 Vrms
• RCA: 6.5 Vrms
• Subsonic filter: 24 dB at 15 Hz
• Dimensions (W x D x H): 502 x 337 x 165 mm
• Weight: 34.5 kg
