Description

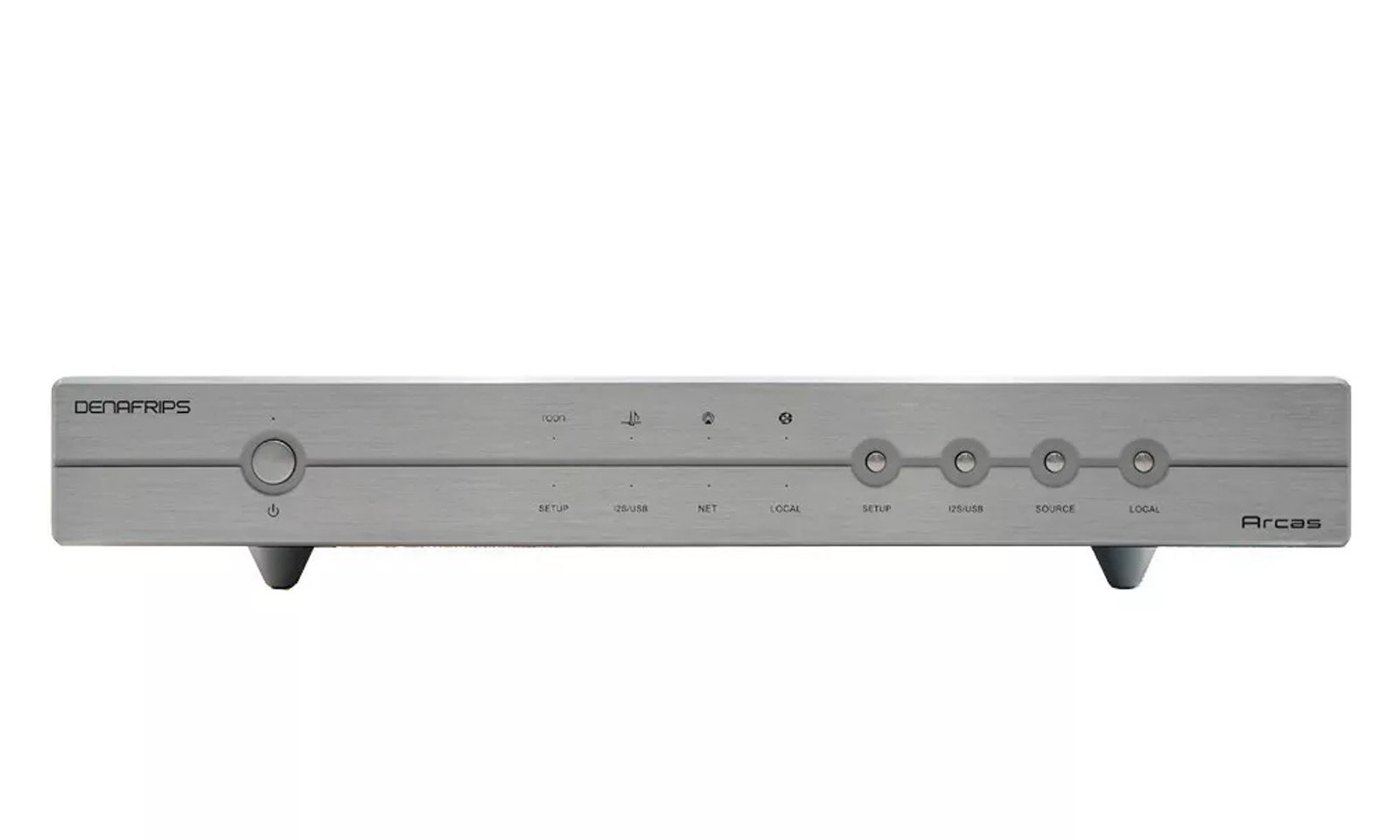

«ARCADIA, the high-end streamer from DENAFRIPS, is meticulously designed to deliver an unmatched sound experience, prioritising exceptional audio quality above all else.
ARCAS represents a significant advance over the already impressive ARCE transmitter, offering enhanced features designed for the most demanding audiophiles.
Both models share support for popular streaming protocols such as Roon Bridge (with Roon Ready pending), HQPlayer NAA, Airplay and DLNA, ensuring a versatile playback experience.
However, ARCAS is distinguished by its additional premium components and expanded connectivity options. Featuring DENAFRIPS' hand-selected, custom oven-controlled crystal oscillator (OCXO) for superior timing precision, the Arcas provides more versatile digital outputs, including duo I2S and duo AES/EBU outputs.
These advancements allow users to effortlessly enjoy their music library with unrivalled sound quality and connectivity.
SPECIFICATIONS:
| Description | Parameters |
|---|---|
| ARCE Streamer | Proprietary Streamer Module developed by DENAFRIPS |
| Tailored Operating System (OS) optimised for sound quality | |
| UPOCC O-Core Transformer, Low Noise LDO Power Supply | |
| OCXO Oven Controlled Crystal Oscillators 45.1548MHz, 49.152MHz | |
| Streaming Services Supported | Roon Bridge (Roon Ready pending) |
| HQPlayer NAA | |
| AirPlay (16/44.1kHz) | |
| DLNA (16/44.1kHz) | |
| DSD | DSD64 / 2.8224MHz (DoP) on All Outputs |
| DSD256 on I²S Output | |
| PCM | 24-bit / 44.1, 48, 88.2, 96, 176.4, 192 kHz on All Outputs |
| 384kHz on I²S Output | |

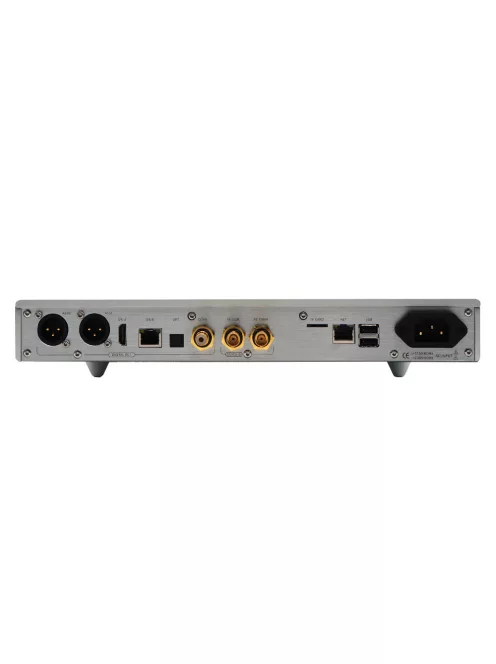

| Digital Output | Coaxial cable x 1 |
| 2 x AES/EBU | |
| TOSLink x 1 | |
| I²S LVDS over HDMI Connector x 1 | |
| I²S LVDS over RJ45 Connector x 1 | |
| Internet Connection | Ethernet RJ45 |
| Storage Files Playback | USB Storage, SD Card, Network shared folder NAS |
| AC Power Requirements | 100-240VAC, 50/60Hz (Worldwide Voltage, Auto-Select) |
| Power Consumption | ≤20W |
| Dimension | 330 x 230 x 65 mm |
| Weight | 4.5 kg |
| Colour | Black / Silver |
| Warranty | 12 months |
