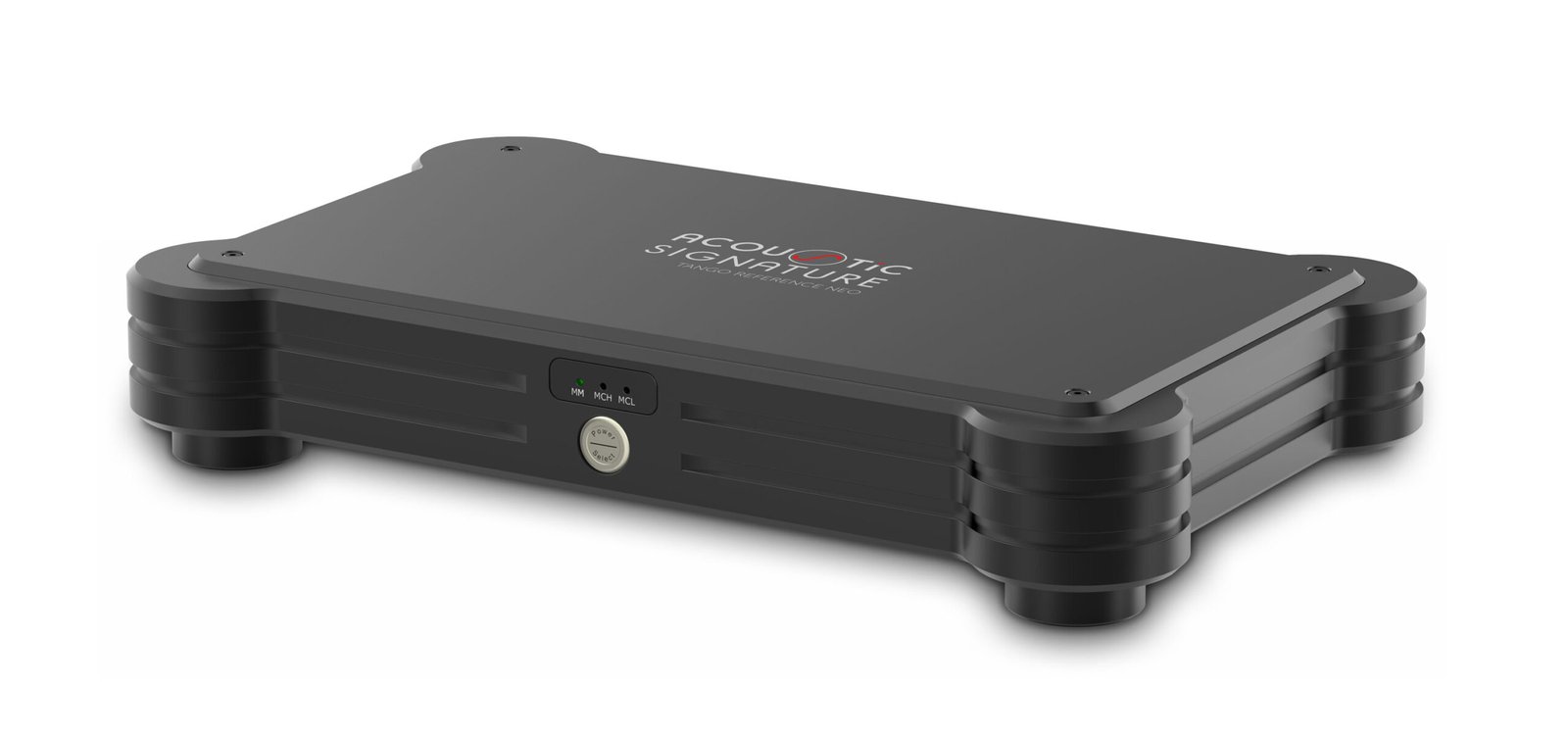

Acoustic Signature Tango Reference NEO

Description

All the capacitors used are hand-selected and measured to provide maximum precision in RIAA equalisation. You can select settings for MM cartridges and also all MC cartridges. The different gain stages provide a perfect match for every cartridge. Input resistance and capacitance are extensively selectable using DIP switches. The gain for MM, high-output MC or low-output MC cartridges can be chosen on the front panel. There is no section within the Tango Reference where you will find a problem.

An internal supercharged linear power supply is used to provide a clean, noise-free supply to the phono stage. With this phono preamplifier, all the information stored on your vinyl is extracted. The electronics are integrated into a massive housing made of steel and aluminium. This elegant chassis made from a solid block protects the circuitry from external influence and boasts a total weight of up to 16 kg.

Specifications:

• Gain at 1 kHz MM / MCH / MCL 42 dB / 54 dB / 66 dB
• User-selectable input impedance
• Switchable MM / MC input (on the front)
• Unbalanced output connections (RCA)
• Operating voltage 24 V DC (internal power supply)
• Channel separation > 92 dB (1 kHz)
• RIAA accuracy ± 0.1 dB
• MM / MC signal-to-noise ratio 89 dB / 74 dB
• Subsonic filter yes
• Weight 16 kg
• Dimensions (H x W x D in mm) 80 x 424 x 244
• 2-year manufacturer's warranty
