Cayin Soul 170 C

(2 customer reviews)

4.500€ VAT included

Valve preamplifier.

XLR and RCA.

Download the user manual

This product comes with a complimentary disc as a gift

Category:

Description

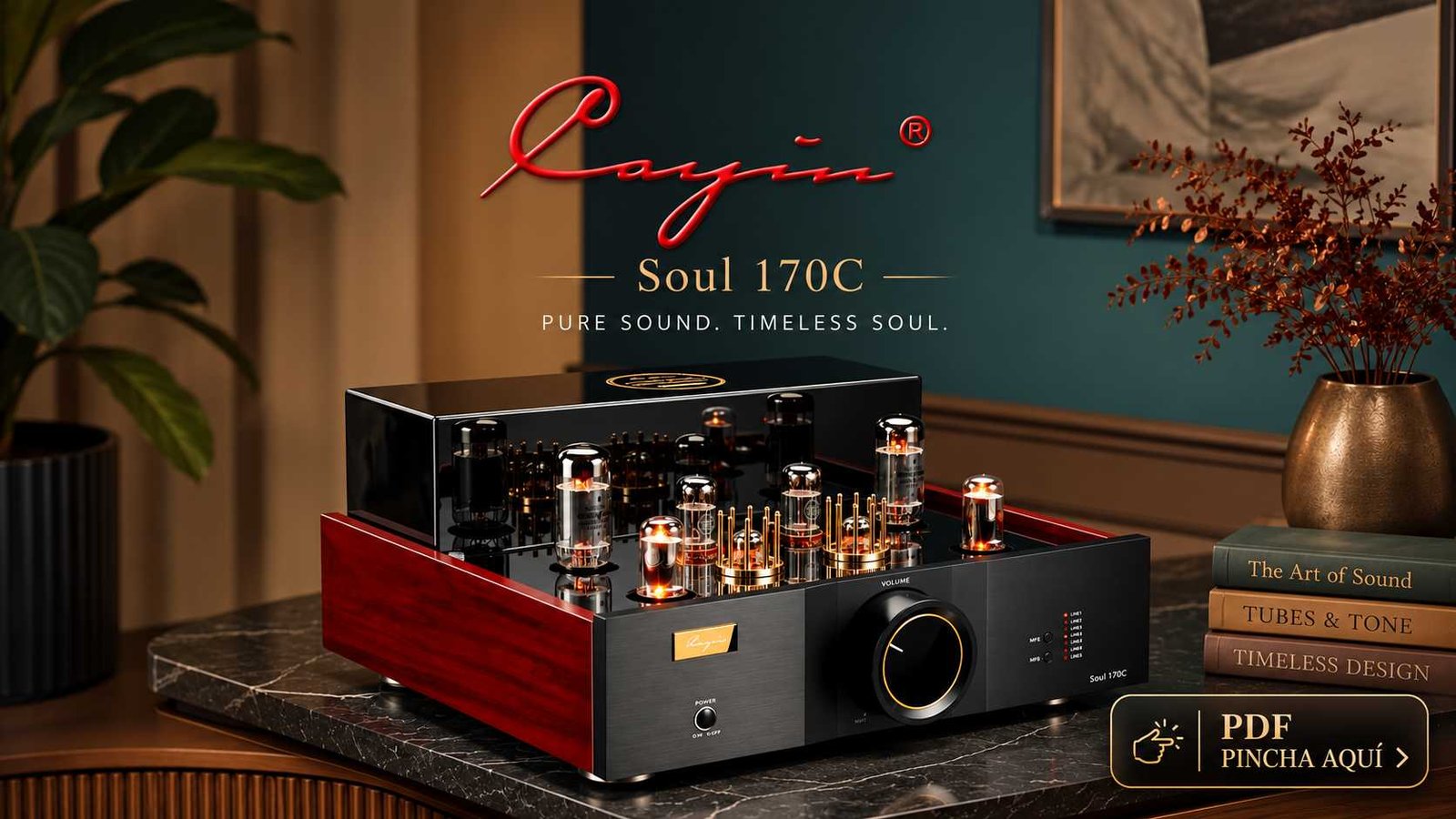

El Cayin Soul 170C es un preamplificador totalmente a válvulas concebido para puristas del sonido analógico. Su arquitectura — completamente cableada punto a punto, con transformadores de alimentación toroidales hechos a mano, chasis de aluminio macizo y paneles laterales de nogal — refleja la filosofía clásica de construcción de “alta fidelidad de verdad”, donde cada detalle cuenta.

La señal recorre una cadena de ocho válvulas cuidadosamente seleccionadas (ECC83, 6SN7GTB, 6CA7 y 17AX4GT), lo que permite una amplificación limpia, dinámica y con la calidez propia del tubo, manteniendo un suelo sonoro silencioso gracias a una relación señal/ruido de 100 dB.

Specifications:

  • Maximum voltage output: 8V RMS (RCA) 16 V RMS (XLR)
  • Plus gain: 17.5dB (NFB. LOW) 16dB (NFB. HIGH)
  • Frequency response: 8Hz ~ 100kHz (±3dB, RCA) – 8Hz ~ 35KHz (±3dB, XLR)
  • THD: 0.02% (2V RMS)
  • S/N ratio: 100 dB (A-weighted)
  • Input impedance: 47kΩ (RCA); 25kΩ (XLR)
  • Output impedance: 380Ω (RCA); 700Ω (XLR)
  • Channel separation: 90dB
  • Input terminals: XLR;LINE 1;LINE 2;LINE 3;LINE 4
  • Output terminals: XLR;RCA
  • Valves: Mullard CV4004/12AX7×2, TUNG-SOL 6SN7GTB×2, 6CA7EH×2, 17AX4GT×2
  • WHD: 430mm×445mm×239mm
  • Net weight: 20kg
  • Energy consumption: 75W (MAX)
  • Operating conditions: Temperature: 0 °C to 40 °C; Humidity: 20% to 80%
  • Storage conditions: Temperature: -20 °C to 70 °C Humidity: 20% to 90%

The Cayin Soul 170 C preamplifier is a true marvel in the audio industry, breaking the mould with its innovative design and performance. This model not only stands out for its exceptional sound quality, but also for its flawless finish, reflecting an absolute commitment to excellence in every detail.

Its ability to provide incomparable sound clarity and fidelity, combined with its sophisticated aesthetics, positions it as a benchmark and a coveted piece among audiophiles and connoisseurs of high-fidelity sound.



In terms of functionality, the Soul 170C offers up to four RCA inputs and one balanced XLR input, as well as RCA and XLR outputs, making it easy to integrate into modern or traditional systems. It allows you to choose between two negative feedback (NFB) settings: in “Low” mode the sound is more open, expressive and natural; in “High” mode, it gains in control, precision and definition, making it ideal for demanding systems or powerful amplifiers. In addition, its motorised ALPS volume control and remote control add convenience without sacrificing quality.

Additional information

Weight 20 kg
Dimensions 43 × 44,5 × 23,9 cm

Brand

Cayin

The audiophile community appreciates Cayin not only for the quality of its products, but also for the support and customer service the brand offers. This has helped Cayin to build a solid reputation and a loyal customer base, who value not only the exceptional performance of their equipment, but also the reliability and service that back every product. Cayin is a brand that has earned a prestigious place in the world of high-fidelity audio, known for its dedication to sound quality and craftsmanship. Its products combine modern technology with traditional methods, creating sound equipment that not only sounds exceptionally good, but also possesses a classic and refined aesthetic. Cayin's amplifiers and music players stand out for their ability to capture the essence of music, offering a listening experience that is both rich and emotive. The brand focuses on sonic precision, ensuring that every note is reproduced with the highest possible fidelity, resulting in a pure and authentic sound. Through Asian manufacturing, we achieve a range of very high-quality products on a very modest budget.
Cayin

2 reviews for Cayin Soul 170 C

  1. Jesús San Isidro (verified owner) –

    Delivery, as always, the very next day and everything was spot on; seeing it in person is truly impressive – the build quality is outstanding, once you plug it in and play it, it’s like rediscovering your entire discography thanks to the musical warmth and the information it provides. It’s a top-class piece of kit in every respect; from any other well-known brand in this field, it would undoubtedly command a five-figure retail price. Many thanks to the team at Lyric.

  2. Miguel Angel (verified owner) –

    My dream has come true and I’m enjoying it.

    Thank Daniel for his excellent service at all times.
